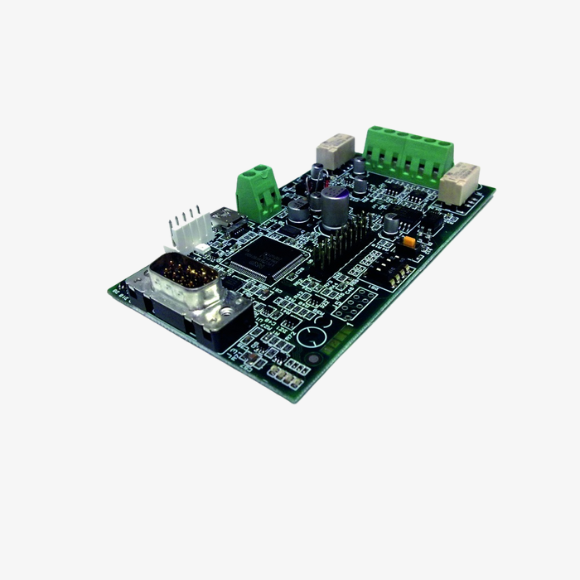

Network card for Olympia and Teledata One control panel

Description

Functional Features
With One Ring you can connect in a ring network up to 32 TeledataOne, so is possible to create a system that shares all informations of each single panel.

Technical Features
• CAN BUS Connection
• speed communication up to 50 Kbps
• High fault tolerant, able in the presence of network failure, to maintain the necessary
information pass between the nodes
• Compatible with central Olympia – Teledata One
• Prepared for mounting inside the central Olympia/Teledata One
• Range up to 1.2 km with a special cable
• Consumption 250mA max – 50mA nominal
• 12 Vdc power supply from the central Olympia
• 24 Vdc power supply from the central TeledataOne
